TRES Duplex

Docta, Córdoba, Argentina

Tres Duplex es un encargo de tres viviendas unifamiliares que se desarrollan en el mismo lote de 15m x 24m - 360m2.

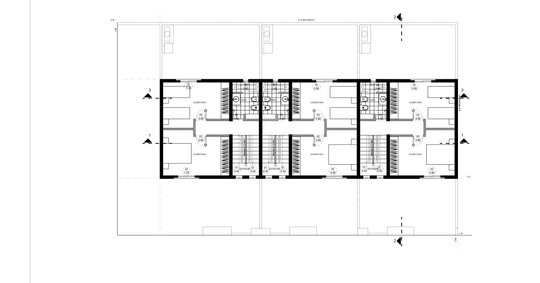

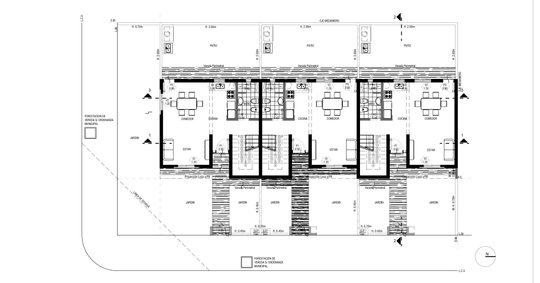

El proyecto unifica una modelo de duplex, dejando un jardín y espacio para vehiculo, un área social diurna en la planta baja, un area de servicios y escalera y un área nocturna de dormitorios en la planta alta.

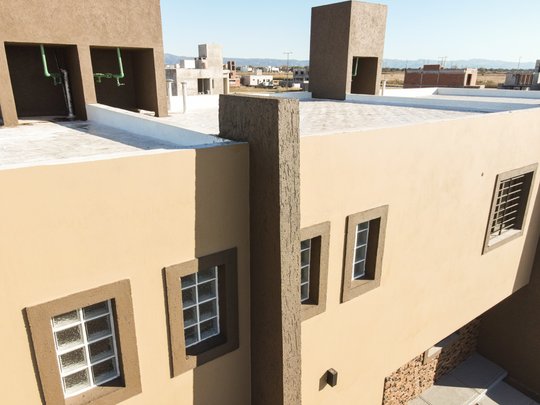

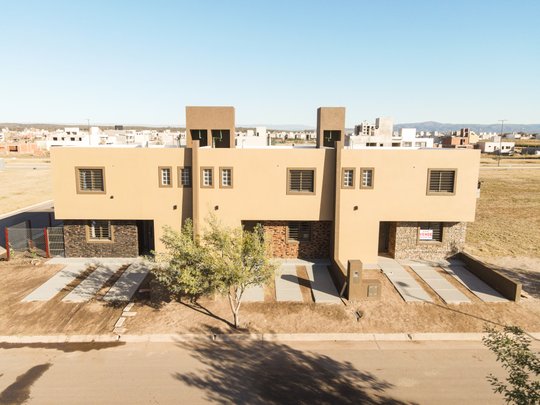

La obra se desarrolla en vía húmeda, con muros portantes y losas de hormigón armado. Para los revestimientos revoque fratazado y pintura latex para exterior.
